Webhooks
Webhooks are "user-defined HTTP callbacks". You can create webhook which triggers on Doc Event of the selected DocType. When the doc_events occurs, the source site makes an HTTP request to the URI configured for the webhook. Users can configure them to cause events on one site to invoke behaviour on another.
Configure Webhook
To add Webhook go to
Integrations > External Documents > Webhook
Webhook
- Select the DocType for which hook needs to be triggered e.g. Note
- Select the DocEvent for which hook needs to be triggered e.g. on_trash
- Enter a valid request URL. On occurence of DocEvent, POST request with doc's json as data is made to the URL.
- Optionally you can add headers to the request to be made. Useful for sending api key if required.
- Optionally you can select fields and set its
keyto be sent as data json

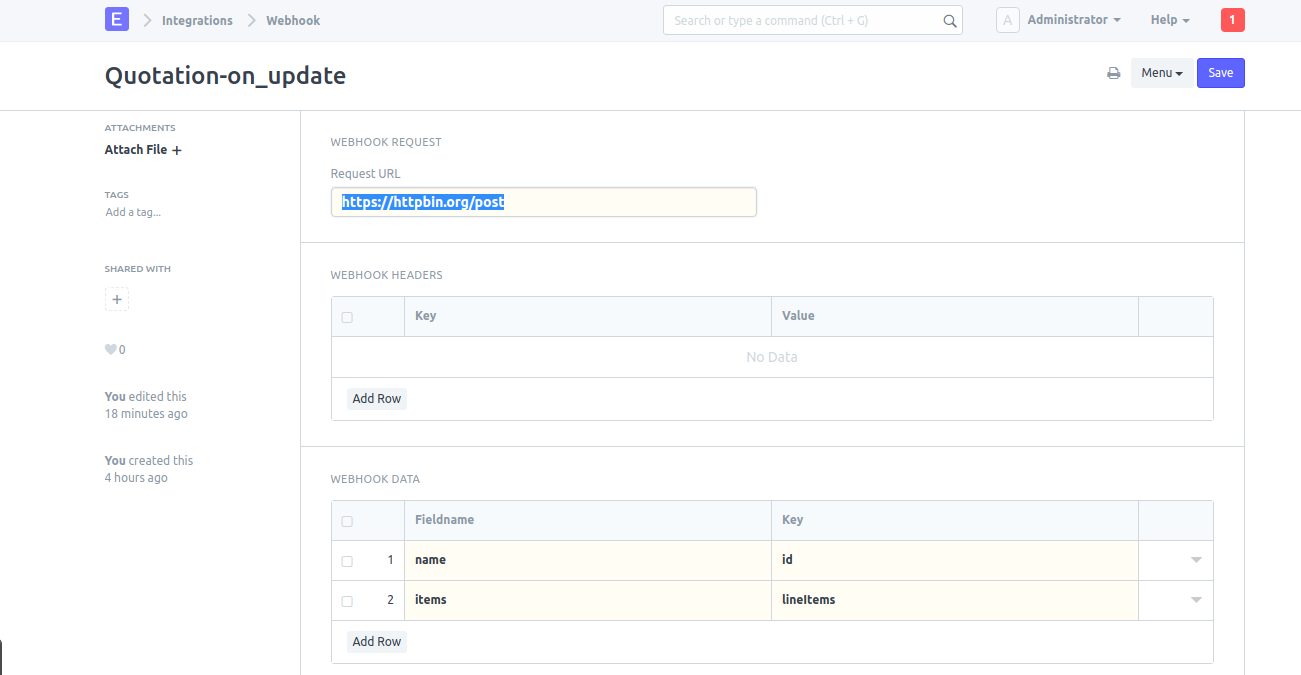

e.g. Webhook
- DocType :
Quotation - Doc Event :
on_update - Request URL :
https://httpbin.org/post - Webhook Data :
- Fieldname :
nameand Key :id - Fieldname :
itemsand Key :lineItems
- Fieldname :
Note: if no headers or data is present, request will be made without any header or body
Example response of request sent by frappe server on Quotation - on_update to https://httpbin.org/post:
{
"args": {},
"data": "{\"lineItems\": [{\"stock_qty\": 1.0, \"base_price_list_rate\": 1.0, \"image\": \"\", \"creation\": \"2017-09-14 13:41:58.373023\", \"base_amount\": 1.0, \"qty\": 1.0, \"margin_rate_or_amount\": 0.0, \"rate\": 1.0, \"owner\": \"Administrator\", \"stock_uom\": \"Unit\", \"base_net_amount\": 1.0, \"page_break\": 0, \"modified_by\": \"Administrator\", \"base_net_rate\": 1.0, \"discount_percentage\": 0.0, \"item_name\": \"I1\", \"amount\": 1.0, \"actual_qty\": 0.0, \"net_rate\": 1.0, \"conversion_factor\": 1.0, \"warehouse\": \"Finished Goods - R\", \"docstatus\": 0, \"prevdoc_docname\": null, \"uom\": \"Unit\", \"description\": \"I1\", \"parent\": \"QTN-00001\", \"brand\": null, \"gst_hsn_code\": null, \"base_rate\": 1.0, \"item_code\": \"I1\", \"projected_qty\": 0.0, \"margin_type\": \"\", \"doctype\": \"Quotation Item\", \"rate_with_margin\": 0.0, \"pricing_rule\": null, \"price_list_rate\": 1.0, \"name\": \"QUOD/00001\", \"idx\": 1, \"item_tax_rate\": \"{}\", \"item_group\": \"Products\", \"modified\": \"2017-09-14 17:09:51.239271\", \"parenttype\": \"Quotation\", \"customer_item_code\": null, \"net_amount\": 1.0, \"prevdoc_doctype\": null, \"parentfield\": \"items\"}], \"id\": \"QTN-00001\"}",
"files": {},
"form": {},
"headers": {
"Accept": "*/*",
"Accept-Encoding": "gzip, deflate",
"Connection": "close",
"Content-Length": "1075",
"Host": "httpbin.org",
"User-Agent": "python-requests/2.18.1"
},
"json": {
"id": "QTN-00001",
"lineItems": [
{
"actual_qty": 0.0,
"amount": 1.0,
"base_amount": 1.0,
"base_net_amount": 1.0,
"base_net_rate": 1.0,
"base_price_list_rate": 1.0,
"base_rate": 1.0,
"brand": null,
"conversion_factor": 1.0,
"creation": "2017-09-14 13:41:58.373023",
"customer_item_code": null,
"description": "I1",
"discount_percentage": 0.0,
"docstatus": 0,
"doctype": "Quotation Item",
"gst_hsn_code": null,
"idx": 1,
"image": "",
"item_code": "I1",
"item_group": "Products",
"item_name": "I1",
"item_tax_rate": "{}",
"margin_rate_or_amount": 0.0,
"margin_type": "",
"modified": "2017-09-14 17:09:51.239271",
"modified_by": "Administrator",
"name": "QUOD/00001",
"net_amount": 1.0,
"net_rate": 1.0,
"owner": "Administrator",
"page_break": 0,
"parent": "QTN-00001",
"parentfield": "items",
"parenttype": "Quotation",
"prevdoc_docname": null,
"prevdoc_doctype": null,
"price_list_rate": 1.0,
"pricing_rule": null,
"projected_qty": 0.0,
"qty": 1.0,
"rate": 1.0,
"rate_with_margin": 0.0,
"stock_qty": 1.0,
"stock_uom": "Unit",
"uom": "Unit",
"warehouse": "Finished Goods - R"
}
]
},
"url": "https://httpbin.org/post"
}
